Overhead Lines
Overhead Line Parts for T-Track & Pipe Track
Corners, wheels, shafts and tensioners for T-track and pipe track overhead lines. Corners come in all sizes.
- 90° and 180° corners
- Drive and idler wheels
- T-track or pipe track
To quote, tell us:
- The part codes you need
- Quantities
- Pipe track or T-track
- Your delivery area
Made in StellenboschDesigned and manufactured in-house
Nationwide deliveryTo any province in South Africa
Installation availableOur own team, start to finish
Features & benefits
- 90° and 180° corners for pipe track or T-track, in all sizes
- Drive wheels and idler wheels from 18 to 30 teeth

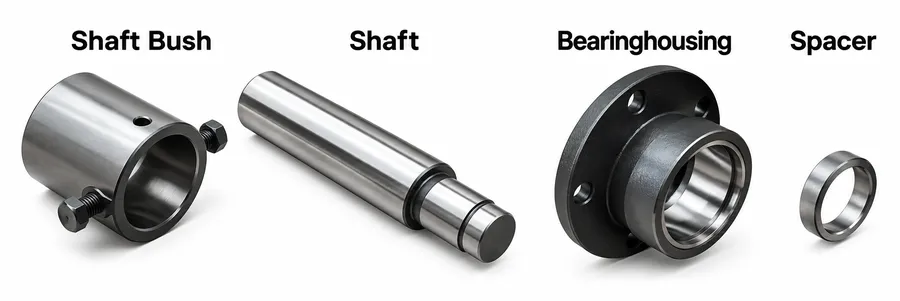

- Stainless steel shafts, spacers, bearing housings and bushes
- Air or spring tensioners
- Rise and falls
Specifications
Full technical specifications for this product are available on request. Contact us and we will send them through.
Overhead line parts listPart codes from our product catalogue.
| Code | Description |
|---|---|
| OLC.1.001SP | Shaft S.S. L=268, diam. 40mm |
| OLC.1.002ST | Shaft S.S. L=220, diam. 40mm |
| OLC.1.003 | Spacer S.S. |
| OLC.1.04BH | Bearing housing SS |
| OLC.1.005B | Corner frame bush SS |
| OLC.1.006 Bolt | M10 25mm all head bolts, 4 off |

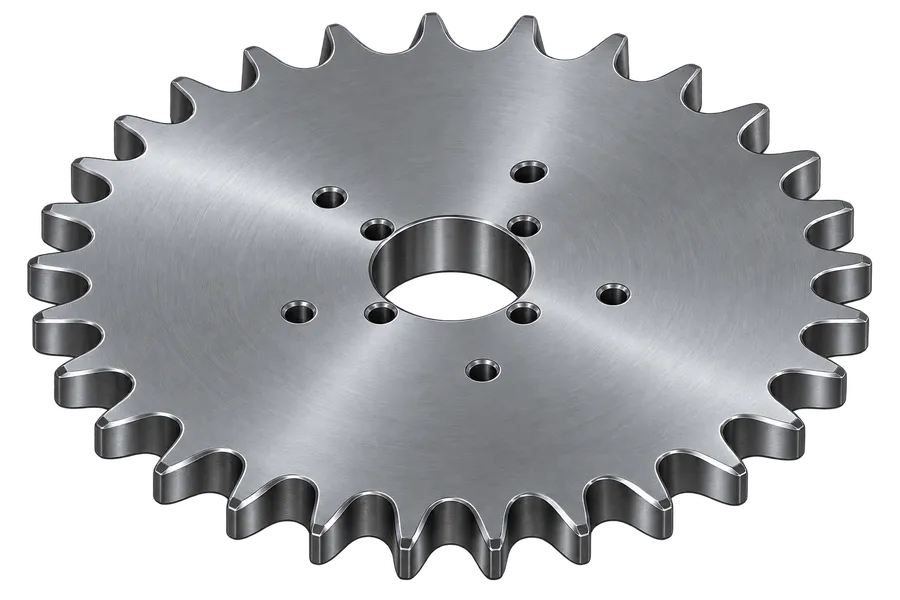

| OLC.1.007DW | Drive wheel 18 teeth 286 PCD |
| OLC.1.008DW | Drive wheel 24 teeth, bore 386 PCD |
| OLC.1.009DW | Drive wheel 30 teeth, bore 486 PCD |
| OLC.1.010DW | Idler wheel 18 teeth 286 PCD |
| OLC.1.011DW | Idler wheel 24 teeth, bore 386 PCD |
| OLC.1.012DW | Idler wheel 30 teeth, bore 486 PCD |
| OLC.1.013CSS | 90° 286 SS corner (pipe track or T-track) |

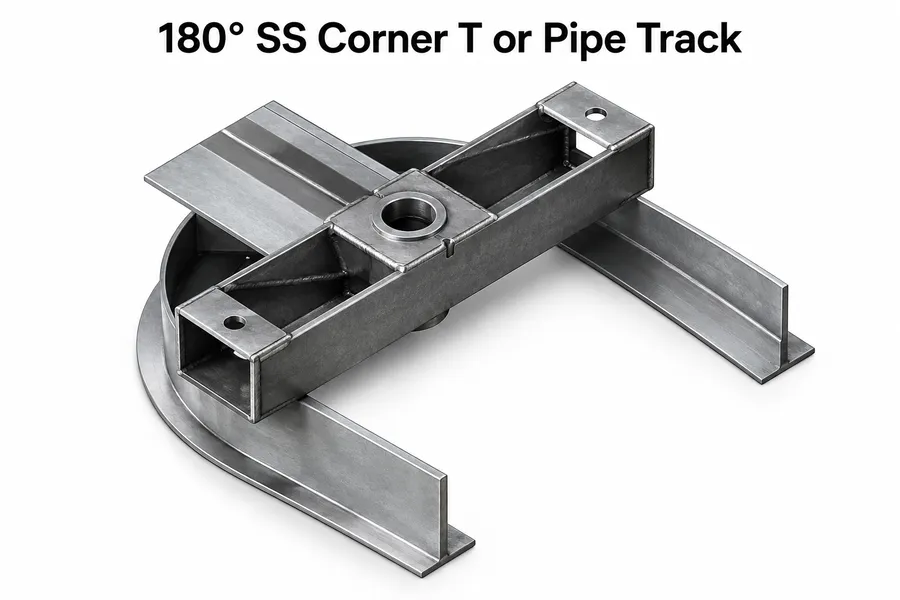

| OLC.1.014CSS | 180° 286 SS corner (pipe track or T-track) |
| OLC.1.015CSS | 90° 386 SS corner (pipe track or T-track) |
| OLC.1.016CSS | 180° 386 SS corner (pipe track or T-track) |
| OLC.1.017CSS | 90° 486 SS corner (pipe track or T-track) |
| OLC.1.018CSS | 180° 486 SS corner (pipe track or T-track) |
| OLC.1.019DCSS | 90° 386 SS drive corner |
| OLC.1.019DCSS | 180° 386 SS drive corner |
| OLC.1.020DCSS | 90° 486 SS drive corner |
| OLC.1.021DCSS | 180° 486 SS drive corner |
| OLC.1.022Ten | Tensioners (air or spring) |
| OLC.1.023RF | Rise and falls 30° |
