Open Plant Cleaning Systems
Stainless Tech offers complete, robust Open Plant Cleaning (OPC) systems. Cleaning is carried out with 18 bar rinsing and low pressure foaming and sanitizing, removing fats, grease, blood and other soiling that is normally difficult to remove from surfaces. It is a very cost effective way to clean plant and equipment in factories.
5 products and 8 accessories in this category
Open Plant Cleaning Systems products
Select a product for its full description, features and specifications.
Foaming & Rinsing Satellite, from Multistage Booster Pump
A 304 stainless steel wall-mounted satellite that foams and rinses from the open plant system's multistage booster pump.
View product →
Foaming, Rinsing & Sanitizing Satellite, from Multistage Booster Pump
A 304 stainless steel wall-mounted satellite that foams, rinses and sanitizes from the open plant system's multistage booster pump.
View product →
Multistage Booster Pump, Single (Option 1)
A single stainless steel vertical multistage 18 bar, 7.5 kW booster pump that powers an open plant cleaning system, supplied complete with control panel, pressure transducer and electrical VSD control panel.
View product →
Multistage Booster Pump, Double (Option 2)
A double stainless steel vertical multistage 18 bar, 7.5 kW booster pump set for larger open plant cleaning systems, supplied complete with control panel, pressure transducer and electrical VSD control panel.
View product →
Mobile Foaming, Rinsing & Sanitizing Unit
A trolley-mounted foaming, rinsing and sanitizing station on castors, carrying its own hose reel and two chemical containers.
View product →Open plant accessories
Hoses, nozzles, valves, fittings and holders used with open plant cleaning systems.
Super Thermo Food Graded Hose
Industrial food graded washing hose, available in 20, 40 and 80 bar ratings to suit low pressure and open plant cleaning systems.
View product →
Clear PVC Reinforced Hose
A flexible clear reinforced PVC hose for medium pressure applications such as air, water, dilute acids and oils.
View product →
Foaming, Rinsing, Sanitizing & Wash Down Nozzles
Colour coded stainless steel nozzles so operators can see at a glance which function each outlet performs.
View product →
Low Pressure Washing Gun
A sturdy, maintenance free washing gun for industrial cleaning operations, with an automatic shut off trigger that reduces water consumption.
View product →
1/2" Low Pressure (LP) Valves
Low pressure wash point valves in 304 stainless steel with a 1/2" female quick coupling, available with a stainless steel or rubber guard.
View product →

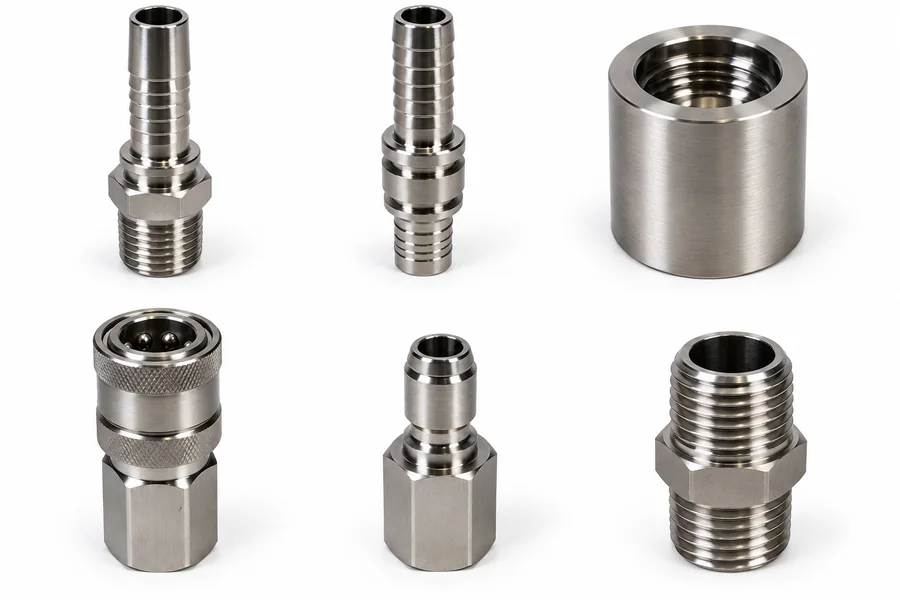

Stainless Steel Fittings for Hose & Wash Gun
1/2" stainless steel fittings for connecting hoses and wash guns, for high or low pressure systems.
View product →
25L Chemical Holders, Single & Double
Wall-mounted 304 stainless steel holders that keep 25 litre chemical containers secure beside a foaming unit.
View product →
Stainless Steel Hose Rail
A wall-mounted 304 stainless steel hose rail that keeps wash-down hose tidy and off the floor.
View product →How it works
How the system works
The system delivers 18 bar hot or cold water at constant pressure through cleaning nozzles that use approximately 28 to 36 litres of water per minute. Single or multistage booster pumps are installed close to a water source or mains in the factory to increase the pressure as required.
Sized to your factory
The booster pump is sized to the capacity of the cleaning system and the number of satellite wash points your factory requires. The pump controls speed up and slow down at constant pressure depending on the number of users, which makes it very energy efficient. Water is discharged from the booster pumps to satellites for foaming, rinsing and sanitizing, and the number of satellites depends on the factory size and floor space.
Booster pump options
Option 1 is a single stainless steel vertical multistage 18 bar, 7.5 kW booster pump. Option 2 is a double stainless steel vertical multistage 18 bar, 7.5 kW booster pump. Both are supplied complete with control panel, pressure transducer and electrical VSD control panel.
Hygiene outcome
The cleaning system can help in the prevention of listeriosis, salmonella and other bacteria in factories.
Technical data
Reference data from our product catalogue. Select a panel to view it.

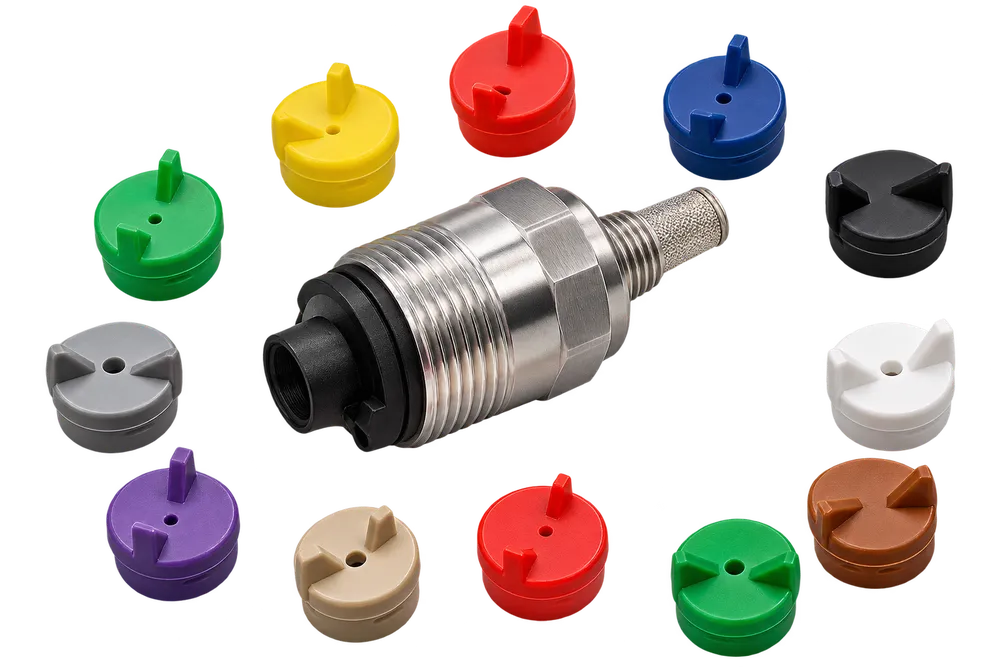

Open plant dosing jetsColour coded dosing jets set how much chemical each satellite injects, from 1% up to 43.6%.
| Jet colour | Max chemical (L/h) | Max dosage |
|---|---|---|
| Red | 2.8 | 1% |
| Orange | 3.42 | 1.25% |
| Black | 4.73 | 1.7% |
| Light green | 8.02 | 2.9% |
| Yellow | 10.59 | 3.75% |
| Brown | 15 | 5.3% |
| Dark green | 23.2 | 8.2% |
| White | 36.8 | 11.5% |
| Blue | 52 | 16.8% |
| Violet | 75.53 | 24.8% |
| Grey | 107 | 40.7% |
| Beige | 111.7 | 43.2% |
| No jet | 114 | 43.6% |
